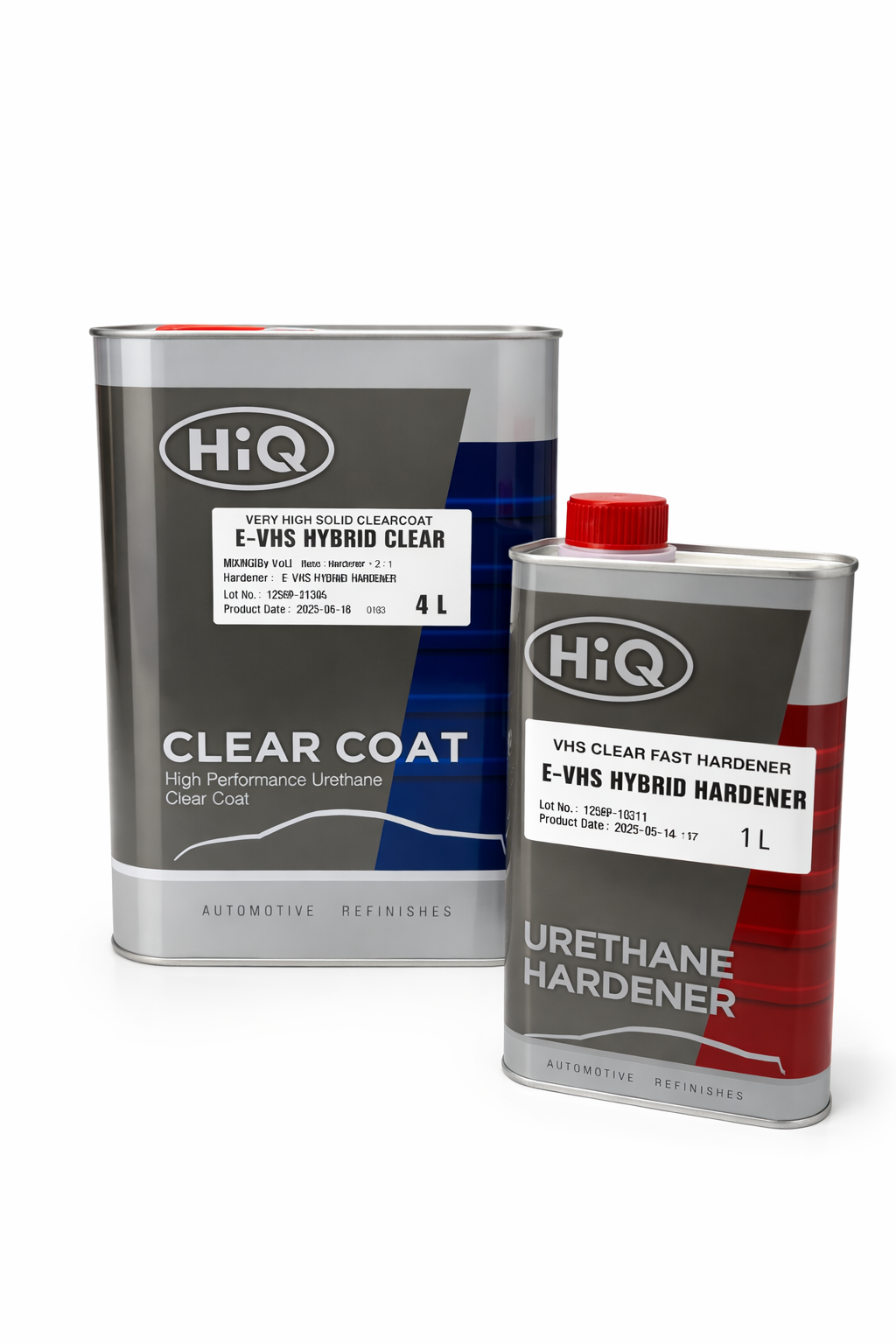

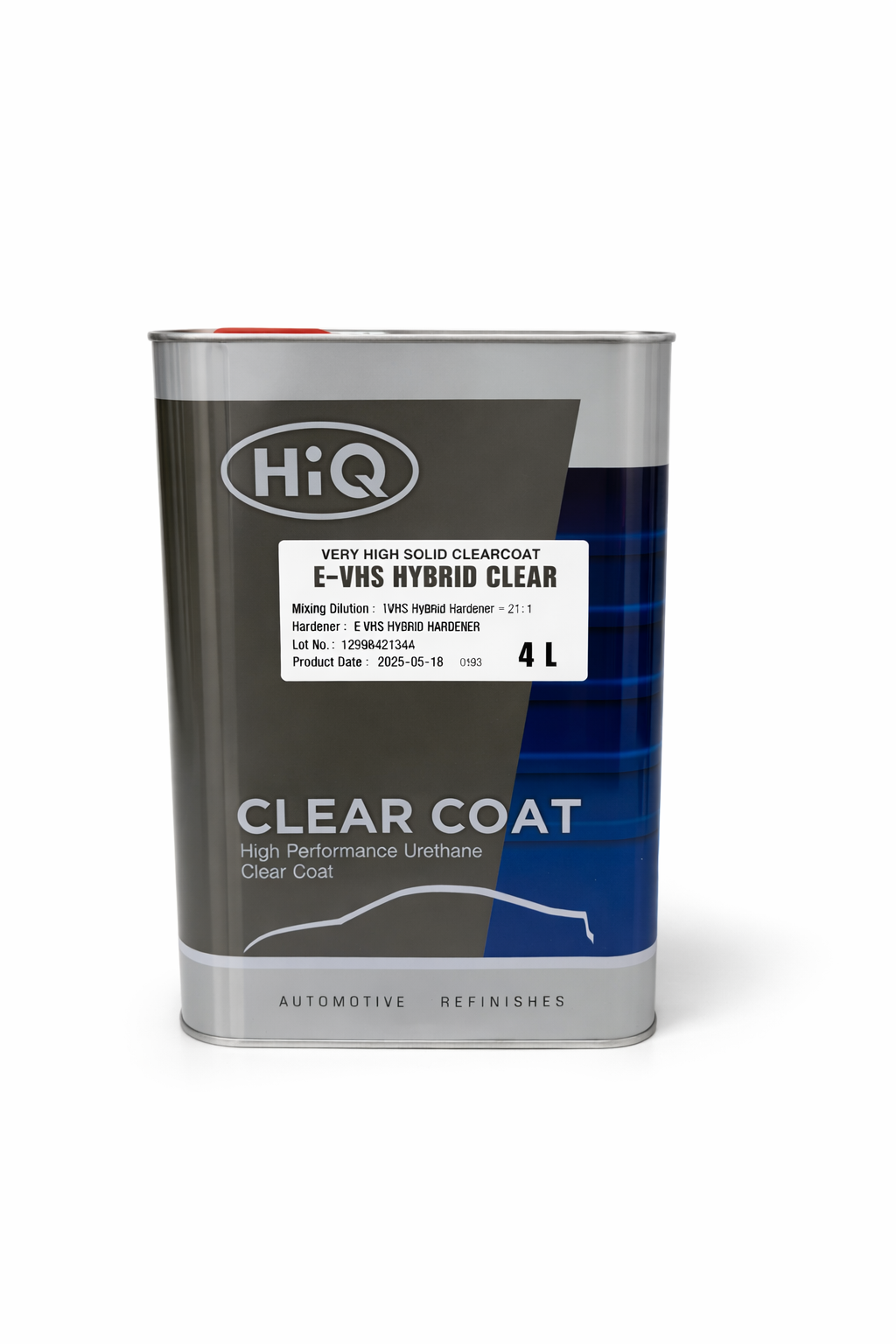

E‑VHS Hybrid Clearcoat KIT
E‑VHS Hybrid Clearcoat KIT
Couldn't load pickup availability
Share
E-VHS Hybrid Clearcoat is a two-component high-solids clearcoat developed with advanced hybrid technology to deliver optimal appearance and fast drying performance. Despite its high solids content, it features low viscosity with excellent flow and leveling properties, making it easy to spray. E-VHS Hybrid Clearcoat provides high gloss, superb finish quality, and strong resistance to common paint defects such as solvent popping and pinholes. It is suitable for both conventional and electric vehicle repairs and can be applied from spot repairs to overall refinishing.
Application Information
Application Information
- Spray pressure : 1.8-2.5 bar
- Number of coats : 1.5-2 wet coats
- Spray distance : 15-20 cm
- Fluid tip : 1.3-1.4 mm
- Dry film thickness : 50-60 µm
- Flash time : 5-10 min
- Set time : 5~10 min
Drying Information
Drying Information
- Time to dust free : 25°C 50~60 min
- Time to polish : 25°C 45 hrs 60°C 15-20 min
- Time to handle : 25°C 4~5 hrs 60°C 20 min (after cooling)
Suitable Substrates
Suitable Substrates
- HiQ basecoat colors (metallic, solid, pearl)
- Bodyian basecoat colors (metallic, solid, pearl)
- WATER Q waterborne basecoat system
- OEM finishes
- Thoroughly dried two-component coatings (urethane, epoxy, etc.)
Blending Information
Blending Information
For blending, E-VHS Hybrid Clearcoat may be diluted 1:1 with DR-600 and applied wider than the previous application area. The edge of the previous coat should be melted using DR-600 to achieve a smooth and seamless blend.
Additional Info
Additional Info
- Recoatable time : 24 hours at ambient temperature after force dry
- Sand and wipe off dust with DR-180 before recoating
- Dry sand P800 / Wet sand P400~P500 before recoating
VOC Content : 420 g/L
Storage condition : Store in a cool, dry place under room temperature (5°C~35°C)
Shelf life :
Clearcoat 24 months
Hardener 12 months
